Folding Sliding Door Sills
Here you can see the profile sections of the main types of sill on offer. Each sill type has a slight variation, offering different benefits and appearance depending upon your projects needs.
The depth of the sills do vary slightly so it is important that you check the CAD section or call us for advice on measuring.
Alternatively if you want us to conduct a site visit then we would be happy to advise you and take all the necessary measurements.
Should you need further advice about the various sill types and their benefits please call us on 01353 882202.

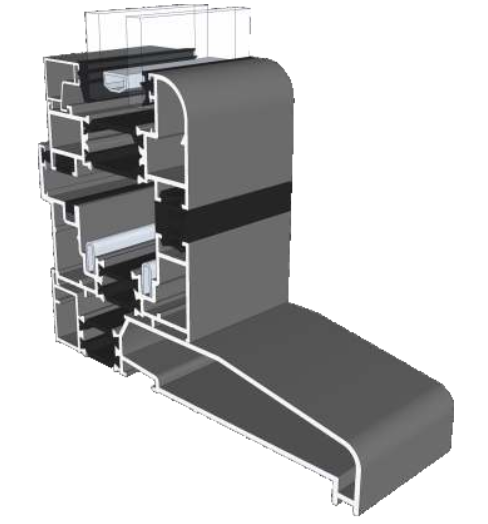

Standard Frame and Sill
An example of our standard frame 76mm and sub sill 150mm creating a 75mm projection which is ideal for the majority of installations.
Our super slim frames create a modern clean look and come in a range of powdercoated colours. Patios can be built up to the doors but it is reccomended that additional drainage is considered. We are happy to give full advice and help with construction details.

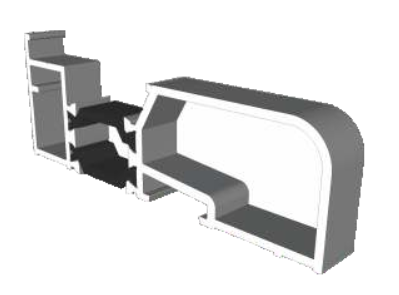

Minimal Sill 85mm
An example of our sub sill 85mm creating a very short stub sill 9mm projection which is ideal for a minimal look.
Our super slim frames create a modern clean look and come in a range of powdercoated colours. Patios can be built up to the doors but it is reccomended that additional drainage is considered. We are happy to give full advice and help with construction details.

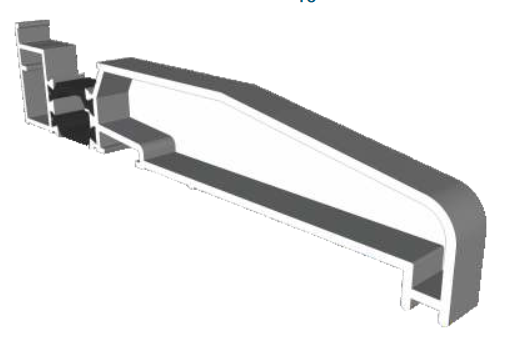

Standard Sill - 150mm
An example of our standard sub sill 150mm creating 75mm projection which is ideal for the majority of installations.
Our super slim frames create a modern clean look and come in a range of powdercoated colours. Patios can be built up to the doors but it is reccomended that additional drainage is considered. We are happy to give full advice and help with construction details.

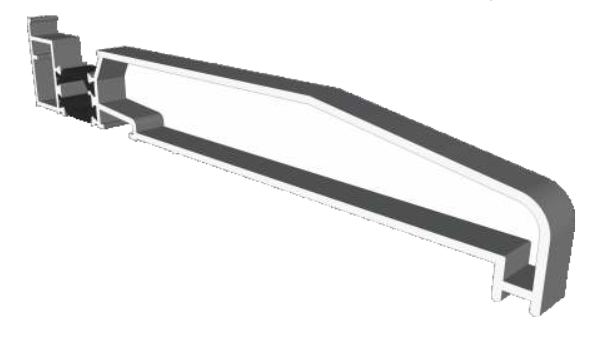

Extended Sill - 190mm
An example of our standard sub sill 190mm creating 114mm projection which offers extra extension past cladding or render.
Our super slim frames create a modern clean look and come in a range of powdercoated colours. Patios can be built up to the doors but it is reccomended that additional drainage is considered. We are happy to give full advice and help with construction details.

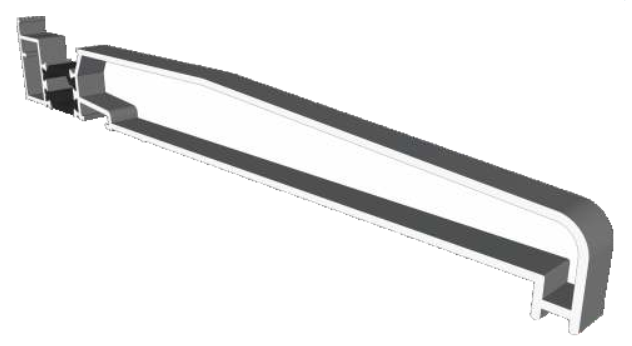

Maximum Sill - 225mm
An example of our standard sub sill 225mm creating 149mm projection which offers extra extension past cladding or render.
Our super slim frames create a modern clean look and come in a range of powdercoated colours. Patios can be built up to the doors but it is reccomended that additional drainage is considered. We are happy to give full advice and help with construction details.
